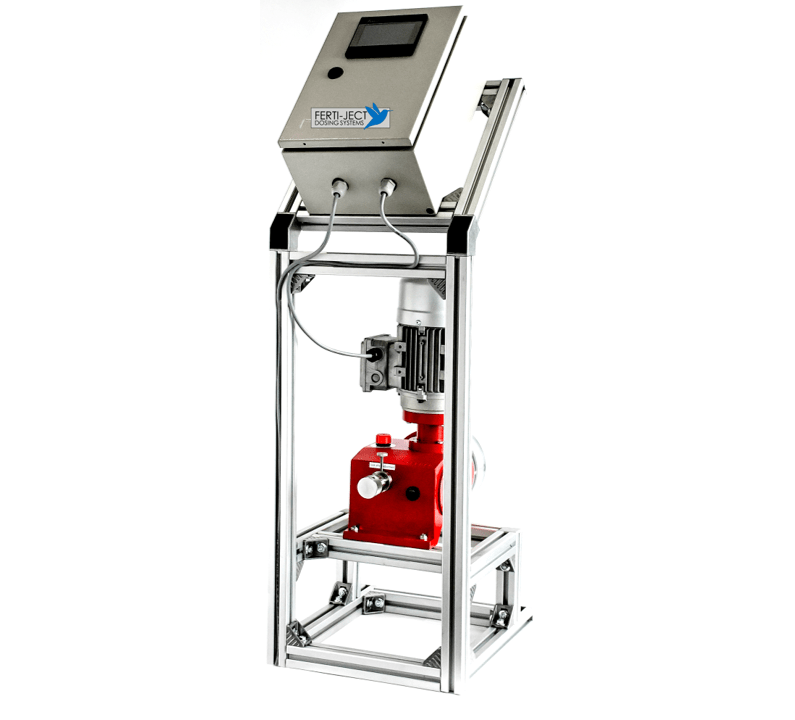

Ferti-Drive Controller

Accurate, Reliable, Simple!

Simple, Easy to Use
Setting the speed control is as simple as turning the dial to match the flow rate table on the keypad.
Proportional Dosing
Ferti-Drive's on-board analogue or modbus inputs connect to flow meters or external controllers.
Remote Start
Mutliple Set Points

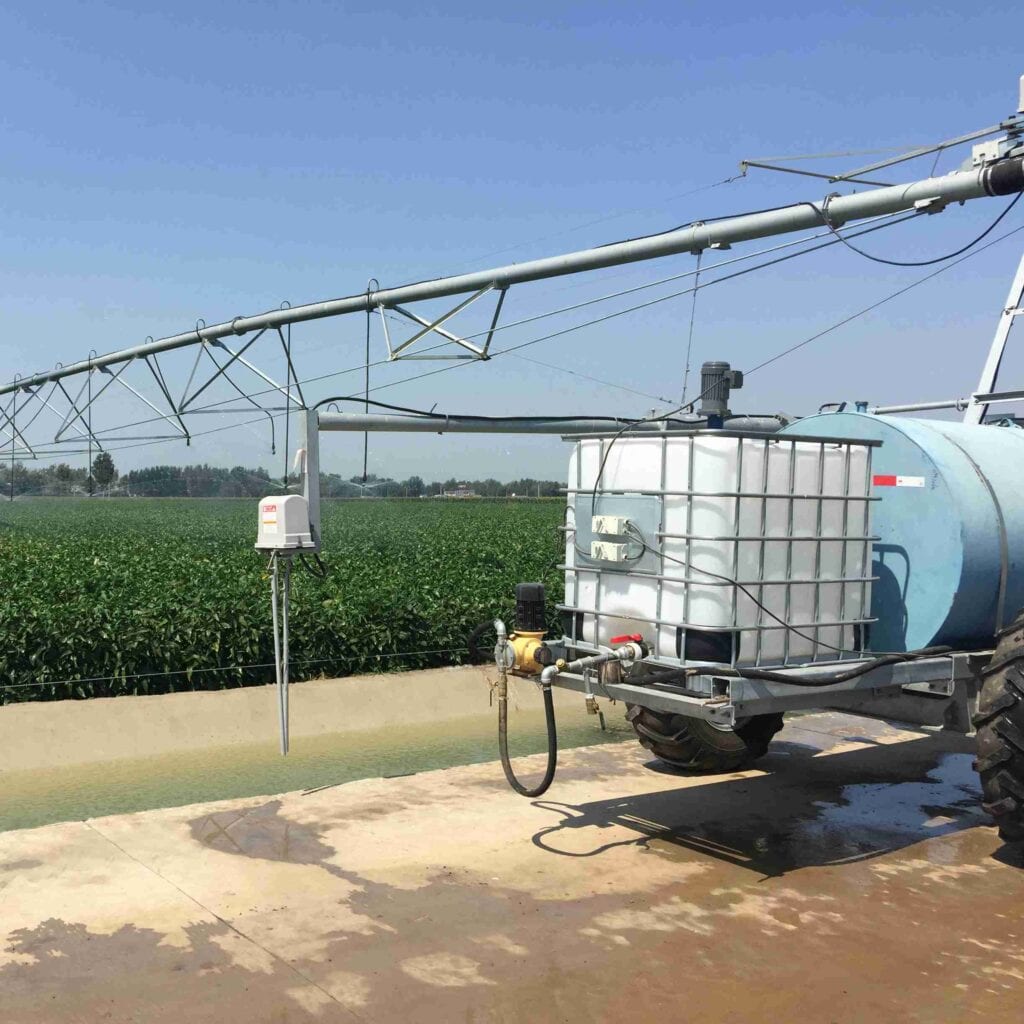

Starts from third party systems such as centre pivot control panels or irrigation control systems.
Simple on-board PLC and multi-step speed operation with up to 6 preset speed inputs available.
Ferti-Drive Models
Model No.
Power
GK.2T/0.40
1 PH, 0.40 kW
GK.2T/0.75
1 PH, 0.75 kW
GK 4T/0.40
3 PH, 0.40 kW
GK.4T/0.75
3 PH, 0.75 kW
GK 4T/1.50
3 PH, 1.50 kW
How it works
The Ferti-Drive controller is a variable frequency drive that acts on the drive motors speed to change the number of strokes per minute which has a direct impact on the flow rate of the pump.
Features at a glance
100 -10%
Adjustment to full scale.
6
Pre-set speed inputs.
Analogue & MODbus
Flow sensor inputs.
Remote Start
Starts from remote signal.
Low Level
Run dry protection.
Other models are available on request.
